| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | Our products are packed in boxs.We will check that if the machine can run before it is sent out.When you receive the goods,please open the package to check out if the goods are in good condition before the courier.If the boxs are damaged or other situation |
| Delivery Period: | 10-15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5 sets per month |

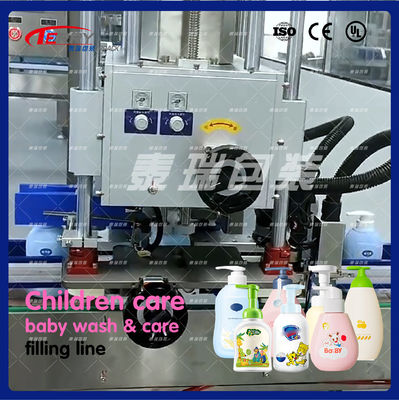

Bath Milk 8 Head Liquid Filling Machine Bottle Filling 220V/50Hz
The filling is carried out in a 3-head following filling mode. Each following filling system includes 2 servos (1 for controlling filling and 1 for the left and right movement of the filling head).
| Application | Daily chemical products,Baby cleanser Shampoo bady care Body milk bath milk hair conditioner | |||
|
Filling head number
|
8 Heads | |||
|
Filling range
|
300-3000ml (Multiple specifications are available)
|
|||
|
Filling accuracy
|
301-500ml±2g ；501-1000ml±3g；1001-3000ml±4g
|
|||
|
Applicable bottle type
|
Bottle size (Φ 50mm- φ118mm); bottle shoulder height (80mm-250mm) Can be customized according to the customer packaging materials
|
|||
|
production capacity
|
≥60 bottles / min (300ml as example) ≥50 bottles / min (2000ml as example) (Production capacity depends on the packaging material conditions and operation proficiency)
|
|||
|
Air pconsumption
|
0.6 ~0.8Mpa (Dry, clean compressed air shall be used)
|
|||
|
source
|
AC380V, 50Hz (three-phase five-wire system)
|
|||
|
Dimension(L*W*H)
|
2200×1500×2300mm
|
|||
| Weight | About 2,000 KG | |||
Features
The filling is controlled by a servo motor and a gear pump. The filling dosage can be set by one button on the touch screen.
The filling nozzle adopts an internal plugging design to prevent dripping. Each set of filling heads is equipped with a bottle-mouth clamping positioning function to prevent the filling head from hitting the bottle mouth.
The top material box is equipped with a liquid level detection system, which automatically detects the liquid level and can control automatic material replenishment.
Q1. Can we customize it??
A: Yes, We can customize according to your requirements and production capacity. Flexible production line.
Q2. What about the lead time?
A:Some machines are shipped within 7 days, and samples can be sent for free testing.
Q3: What kind of payments do you accept?
A:T/T, L/C, Western Union, etc..
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products,All accessories damaged within one year (except for human damage) will be borne by our company, including freight.
Q5: What's the MOQ?
A:MOQ is 1 set.
Contact:Cyn.wu
Wechat/Whatsapp:0086-13921010106
