Detergent Dishwashing Liquid Filling Machine 220V/380V

Products

Cosmetic Cream Filling Machine

Dishwashing Liquid Filling Machine

Tube Filling And Sealing Machine

Detergent Dishwashing Liquid Filling Machine 220V/380V

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Our products are packed in boxs.We will check that if the machine can run before it is sent out.When you receive the goods,please open the package to check out if the goods are in good condition before the courier.If the boxs are damaged or other situation
Delivery Period:	10-15 days
Payment Method:	L/C, T/T
Supply Capacity:	5 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Terry

Certification

CE ISO9001

Application:

Baby Cleanser Shampoo Bady Care Body Milk Bath Milk

Filling Speed:

60BPM

Filling Range:

300-3000mL

Key Selling Points:

Servo Quantitative Filling

Place Of Origin:

Jiangsu, China

Power Consumption:

1.5kw

Filling Type:

Piston Filling

Model:

Automatic

Capacity:

1000-5000 Bottles/hour

Bottle Type:

Round/Square/Flat

Accuracy:

±1%

Power Supply:

220V/380V

Control System:

PLC

Filling Volume:

50-1000ml

Air Consumption:

0.8m3/min

Material:

Stainless Steel

Weight:

500kg

Touch Screen:

Human-Machine Interface

Bottle Size:

50-500ml

Air Pressure:

0.4-0.6Mpa

Minimum Order Quantity:

1 set

Price:

Negotiable

Packaging Details:

Our products are packed in boxs.We will check that if the machine can run before it is sent out.When you receive the goods,please open the package to check out if the goods are in good condition before the courier.If the boxs are damaged or other situation

Delivery Time:

10-15 days

Payment Terms:

L/C, T/T

Supply Ability:

5 sets per month

Highlight:

Dishwashing Liquid Filling Machine 60BPM

detergent filling machine 60BPM

detergent filling machine 380V

Product Description

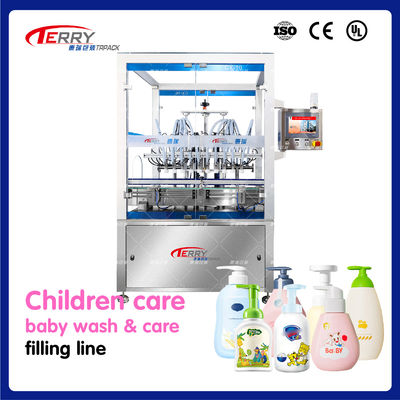

Multi-Specification 8 Heads Dishwashing Liquid Filling Machine

Fully Automatic 8 Heads Children Baby Shampoo Shower Gel Wash And Care Follow Up Filling Packing Line

GSG3000-8 overall following filling machine

Automatic servo filling machine is our new automatic filling machine, using servo motor drive mode, filling speed is stable, small gas consumption, can set the first fast after slow filling mode, more intelligent, humanized. Filling with the automatic quantitative filling of various bottled liquids, suitable for the daily chemical industry, or frequent replacement of materials and cleaning requirements of users.

Application	Daily chemical products,Baby cleanser Shampoo bady care Body milk bath milk hair conditioner
Filling head number	8 Heads
Filling range	300-3000ml (Multiple specifications are available)
Filling accuracy	301-500ml±2g ；501-1000ml±3g；1001-3000ml±4g
Applicable bottle type	Bottle size (Φ 50mm- φ118mm); bottle shoulder height (80mm-250mm) Can be customized according to the customer packaging materials
production capacity	≥60 bottles / min (300ml as example) ≥50 bottles / min (2000ml as example) (Production capacity depends on the packaging material conditions and operation proficiency)
Air pconsumption	0.6 ~0.8Mpa (Dry, clean compressed air shall be used)
source	AC380V, 50Hz (three-phase five-wire system)
Dimension(LWH)	2200×1500×2300mm
Weight	About 2,000 KG

Features

1. xxx type hose filling and sealing machine is mainly used for primary transmission principle;
2. Using imported sensors and other electrical components control, a change of the old model of pneumatic control components, not easy to abrasion;

3. The rotary table equipped with fixture is driven to move intermittently by the Geneva indexing mechanism to complete a series of functions, such as automatic pipe arrangement, automatic pipe laying, automatic filling, internal and external heating, tail sealing, code pressing, edge cutting, finished product exit, etc;
4. Accurate filling measurement, stable and adjustable heating time, beautiful, neat, firm and sanitary appearance of sealing tail;
5. The whole machine runs stably and reliably without noise and other pollution;

The whlole electric control system adopts an integrated electronic control system, which is more stable, reliable, safe, and low energy consumption

No.	Name	Brand	Remark
1	PLC	INOVANCE
2	touch screen	INOVANCE
3	inverter	INOVANCE
4	servo system	INOVANCE
5	Photoelectric sensor	SICK
6	Pneumatic components	AirTAC

Packing:

About us:

The first of China;The leading of world;The best of national brand

FAQ:

Q1. Can we customize it??

A: Yes, We can customize according to your requirements and production capacity. Flexible production line.

Q2. What about the lead time?

A:Some machines are shipped within 7 days, and samples can be sent for free testing.

Q3: What kind of payments do you accept?

A:T/T, L/C, Western Union, etc..

Q4: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products,All accessories damaged within one year (except for human damage) will be borne by our company, including freight.

Q5: What's the MOQ?

A:MOQ is 1 set.
